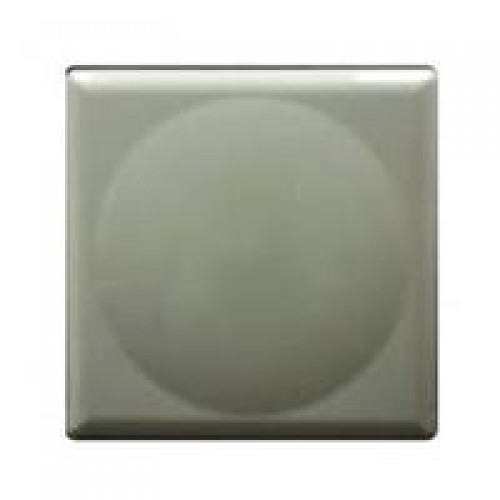

Hpe aruba networking ant-4X4-5314 is a multi-Polarized antenna with 30° h x 30° v beamwidths.

This antenna is well suited for coverage along a street, spot coverage, or for covering a seating section in stadiums and other large public venues.

It is also ideal for point-To-Point connections.

The narrower beamwidth reduces the zone where interference may be received.

Frequency / max gain • 4.9–6.0 ghz 14 dbi dimensions • 260 x 260 x 30 mm 7.5 x 7.5 x 1.2 inches polarization • h, v, and dual slant 45° weight • 1200G 2.6 lbs beamwidth • horizontal plane: 30° • vertical plane: 30° housing • backplate: aluminum • radome: plastic impedance • 50 ohms connectors • n-Type female x4 rf cables not included maximum input power • 6 watts operating temperature • -45°C to 65°C vswr • 2:1 max installation hardware • mount kit for wall and pole included

Hpe aruba networking ant-4X4-5314 is a multi-Polarized antenna with 30° h x 30° v beamwidths.

This antenna is well suited for coverage along a street, spot coverage, or for covering a seating section in stadiums and other large public venues.

It is also ideal for point-To-Point connections.

The narrower beamwidth reduces the zone where interference may be received.

Frequency / max gain • 4.9–6.0 ghz 14 dbi dimensions • 260 x 260 x 30 mm 7.5 x 7.5 x 1.2 inches polarization • h, v, and dual slant 45° weight • 1200G 2.6 lbs beamwidth • horizontal plane: 30° • vertical plane: 30° housing • backplate: aluminum • radome: plastic impedance • 50 ohms connectors • n-Type female x4 rf cables not included maximum input power • 6 watts operating temperature • -45°C to 65°C vswr • 2:1 max installation hardware • mount kit for wall and pole included
