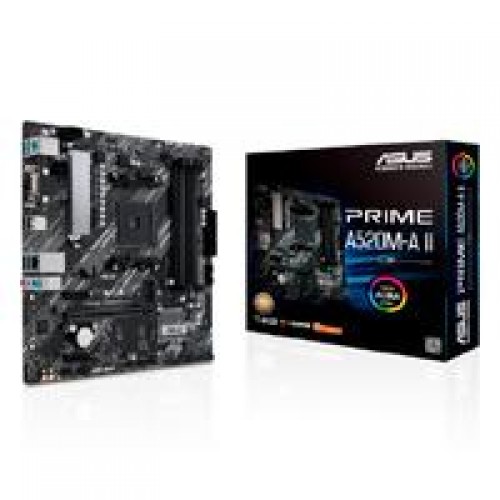

Tarjeta madre micro atx amd a520 (Ryzen am4) con m.2, dp, hdmi, d-Sub, sata 6 gbps, puertos usb 3.2 gen 1 y compatibilidad con iluminación aura sync rgb.

socket amd am4: listo para procesadores de escritorio ryzen™ 5000 series / 5000 g-Series / 4000 g-Series / 3000 series.

refrigeración completa: disipador de calor vrm, disipador de calor pch y fan xpert 2+.

conectividad ultrarrápida: compatibilidad con m.2, ethernet de 1 gb, usb 3.2 gen 1 tipo a.

aura sync rgb: puertos rgb integrados y puertos gen 2 direccionables para tiras de led rgb, que se sincronizan fácilmente con hardware compatible con aura sync.

asus control center express (Acce) para una gestión de terminales de ti más sencilla.

Cpu.

Amd ryzen™ 5000 series/ 5000 g-Series/ 4000 g-Series/ 3000 series desktop processors.

*Refer to www.Asus.Com for cpu support list.

chipset.

A520.

memoria.

Canales de memoria:4 x dimm, max.

128Gb, ddr4.

4800(Oc)/4600(Oc)/4466(Oc)/4400(Oc)/4266(Oc)/4133(Oc)/4000(Oc)/3866(Oc)/3733(Oc)/3600(Oc)/3466(Oc)/3333(Oc)/3200/3000/2800/2666/2400/2133 mhz, un-Buffered memory*.

Dual channel memory architecture.

*Ecc memory (Ecc mode) support varies by cpu.

*Refer to www.Asus.Com for the memory qvl (Qualified vendors lists), and memory frequency support depends on the cpu types.

gráficos.

1 x displayport 1.2.

1 x d-Sub.

1 x hdmi® port***.

*Graphics specifications may vary between cpu types.

ranuras de expansión.

Amd ryzen™ 5000 series/ 5000 g-Series/ 4000 g-Series/ 3000 series desktop processors.

1 x pcie 3.0 x16 slot (Supports x16 mode).

Amd a520 chipset.

2 x pcie 3.0 x1 slots.

almacenamiento.

Supports 1 x m.2 slot and 4 x sata 6Gb/S ports.

Amd ryzen™ 5000 series/ 5000 g-Series/ 4000 g-Series/ 3000 series desktop processors.

M.2 slot (Key m), type 2242/2260/2280 (Supports pcie 3.0 x4 and sata modes).

Amd a520 chipset.

4 x sata 6Gb/S ports.

Support raid 0, 1, 10.

usb.

Usb trasero:Total 6 ports.

4 x usb 3.2 gen 1 ports (4 x type-A).

2 x usb 2.0 ports (2 x type-A).

Usb frontal:Front usb port ( total 6 ).

1 x usb 3.2 gen 1 header supports additional 2 usb 3.2 gen 1 ports.

2 x usb 2.0 headers support additional 4 usb 2.0 ports.

audio.

Alc887/897.

Realtek alc887/897 7.1 surround sound high definition audio codec*.

- supports : jack detection, multi-Streaming, front panel jack-Retasking.

- supports up to 24-Bit/192 khz playback.

Audio features.

- audio shielding.

- premium japanese audio capacitors.

- dedicated audio pcb layers.

*A chassis with an hd audio module in the front panel is required to support 7.1 surround sound audio output.

puertos e/S traseros.

4 x usb 3.2 gen 1 ports (4 x type-A).

2 x usb 2.0 ports (2 x type-A).

1 x displayport.

1 x hdmitm port.

1 x d-Sub.

1 x realtek 1Gb ethernet port.

3 x audio jacks.

1 x ps/2 keyboard/Mouse combo port.

puertos internos.

Fan and cooling related.

1 x 4-Pin cpu fan header.

2 x 4-Pin chassis fan headers.

Power related.

1 x 24-Pin main power connector.

1 x 8-Pin +12V power connector.

Storage related.

1 x m.2 slot (Key m).

4 x sata 6Gb/S ports.

Usb.

1 x usb 3.2 gen 1 header supports additional 2 usb 3.2 gen 1 ports.

2 x usb 2.0 headers support additional 4 usb 2.0 ports.

Miscellaneous.

2 x aura addressable gen 2 header.

2 x aura rgb headers.

1 x clear cmos header.

1 x com port header.

1 x front panel audio header (Aafp).

1 x s/Pdif out header.

1 x speaker header.

1 x spi tpm header (14-1Pin).

1 x 10-1 pin system panel header.

Funciones especiales de asus.

Asus 5X protection iii.

- digi+ vrm.

- languard.

- overvoltage protection.

- safeslot core.

- stainless-Steel back i/O.

Asus q-Design.

- asus q-Dimm.

- asus q-Slot.

Asus thermal solution.

- vrm heatsink design.

Aura sync.

- aura rgb headers.

- addressable gen 2 rgb headers.

software.

Asus exclusive software.

Armoury crate.

- aura creator.

- aura sync.

Ai suite 3.

- performance and power saving utility.

Turbov evo.

Epu.

Digi+ vrm.

Fan xpert 2+.

- ez update.

Asus cpu-Z.

Ai charger.

Daemon tools.

Norton anti-Virus software (Free trial version).

Winrar.

Uefi bios.

Asus ez diy.

- asus crashfree bios 3.

- asus ez flash 3.

- asus uefi bios ez mode.

bios.

128 mb flash rom, uefi ami bios.

Manejabilidad.

Wol by pme, pxe.

accesorios.

Cables.

2 x sata 6Gb/S cables.

Miscellaneous.

1 x i/O shield.

1 x m.2 ssd screw package.

Installation media.

1 x support dvd.

Documentation.

1 x user manual.

sistema operativo.

Windows® 10 64-Bit.

Windows® 7 64-Bit *1.

factor de forma.

Matx.

9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
