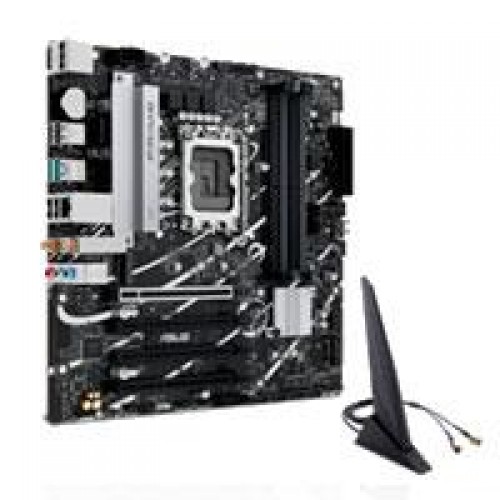

Prime b760M-A ax6 ii.

las placas base asus prime están diseñadas por expertos para liberar todo el potencial de los procesadores intel core de 14.ª y 13.ª generación.

con un diseño de alimentación robusto, soluciones de refrigeración integrales y opciones de ajuste inteligentes, prime b760M-A ax6 ii ofrece a usuarios y ensambladores de pc diy diversas optimizaciones de rendimiento mediante funciones intuitivas de software y firmware.

Esta plataforma ofrece la potencia y la conectividad que exigen las aplicaciones avanzadas de ia para pc.

Prime b760M-A ax6 ii.

cpu.

Intel® socket lga1700 for intel® core™14Th and 13Th gen processors, intel® core™ 12Th gen, pentium® gold and celeron® processors*.

Supports intel® turbo boost technology 2.0 and intel® turbo boost max technology 3.0**.

chipset.

Intel® b760 chipset.

memory.

4 x dimm, max.

192Gb, ddr5 7200+(Oc)/7000(Oc)/6800(Oc)/6600(Oc)/6400(Oc)/6200(Oc)/6000(Oc)/5800(Oc)/5600/ 5400/5200/5000/4800Mhz non-Ecc, un-Buffered memory*.

Dual channel memory architecture.

Supports intel® extreme memory profile (Xmp).

Optimem ii.

graphics.

1 x displayport**.

1 x hdmitm port***.

*Graphics specifications may vary between cpu types.

Please refer to www.Intel.Com for any updates.

*.

*Supports max.

4K@60Hz as specified in displayport 1.4.

**.

*Supports 4K@60Hz as specified in hdmi 2.1.

expansion slots.

Intel® core™ processors (14Th and 13Th and 12Th gen).

1 x pcie 4.0 x16 slot.

Intel® b760 chipset.

1 x pcie 4.0 x16 slot (Supports x4 mode).

2 x pcie 4.0 x16 slot (Support x1 mode).

storage.

Total supports 3 x m.2 slots and 4 x sata 6Gb/S ports*.

Intel® core™ processors (14Th and 13Th and 12Th gen).

M.2_1 slot (Key m), type 2242/2260/2280 (Supports pcie 4.0 x4 mode).

Intel® b760 chipset.

M.2_2 slot (Key m), type 2242/2260/2280 (Supports pcie 4.0 x4 mode).

M.2_3 slot (Key m), type 2242/2260/2280 (Supports pcie 3.0 x2 mode).

4 x sata 6Gb/S ports.

*Intel® rapid storage technology supports sata raid 0/1/5/10.

ethernet.

1 x realtek 1Gb ethernet.

wireless and bluetooth.

Wi-Fi 6.

Wi-Fi 6 (802.11 a/B/G/N/Ac/Ax).

Supports 2.4/5Ghz frequency band.

Bluetooth® v5.3.

*The bluetooth version may vary, please refer to the wi-Fi module manufacturers website for the latest specifications.

usb.

Rear usb (Total 6 ports).

2 x usb 10Gbps ports (2 x type-A).

4 x usb 2.0 ports (4 x type-A).

Front usb (Total 10 ports).

2 x usb 5Gbps headers support 4 additional usb 5Gbps ports.

2 x usb 5Gbps port (Support usb type-C®).

2 x usb 2.0 headers support 4 additional usb 2.0 ports

GARANTÍA: 3 AÑOS
